Usage Guide¶

There are two major stages which can run separately or simultaneously: ligand preparation and their docking.

Database Initialization / Ligand Preparation¶

EasyDock uses an SQLite database to store all inputs, parameters, and results. Once initialized, the database preserves all settings for reproducibility.

Basic Initialization¶

Create a database with molecule validation:

easydock -i input.smi -o output.db -c 4

Parameters:
- -i: Input SMILES file
- -o: Output database file
- -c: Number of CPU cores

This performs:
- Salt removal
- Generation of one stereoisomer if there are some undefined chiral centers or double bonds (reproducible generation)
- Conversion to 3D structures (or uses existing coordinates if 3D SDF input)

Stereoisomer Enumeration¶

Enumerate up to 4 stereoisomers for undefined chiral centers and double bonds:

easydock -i input.smi -o output.db -c 4 -s 4

Maximum runtime of stereoisomer enumeration is limited to 300 seconds per molecule. This avoids excessively long generation for some structures. In those cases it is recommended to enumerate stereoisomers before supplying these molecules to EasyDock.

Protonation Options¶

Using MolGpKa:

easydock -i input.smi -o output.db -c 4 --protonation molgpka

Using MolGpKa with post-processing SMARTS fixes (corrects common mis-protonations):

easydock -i input.smi -o output.db -c 4 --protonation molgpka_fix

Using pre-built Uni-pKa container:

easydock -i input.smi -o output.db -c 4 --protonation /path/to/unipka.sif

Using Chemaxon (requires license):

easydock -i input.smi -o output.db -c 4 --protonation chemaxon

Custom pH

easydock -i input.smi -o output.db -c 4 --protonation molgpka --pH 12

No protonation (use input states):

easydock -i input.smi -o output.db -c 4

Standalone Uni-pKa Usage¶

The Uni-pKa container can also be run on its own, outside the docking pipeline, to inspect protonation states in more detail than EasyDock needs. Its protonate command reads tab-separated SMILES<TAB>name records from a file (-i) or from STDIN, and writes the result to a file (-o) or to STDOUT:

# Apptainer
apptainer run unipka.sif protonate -i input.smi -o output.smi

# Docker
docker run -i unipka protonate -i input.smi -o output.smi

Every output line contains the protonated SMILES, the molecule name and the occupancy of that form at the requested pH:

CC(=O)Oc1ccccc1C(=O)[O-]    ASPIRIN 0.9998

If no protonation form could be predicted, the input SMILES is returned with NA instead of an occupancy value.

Retrieving Several Microspecies¶

The occupancy threshold has a higher priority than the number of forms: the threshold filters the forms and -n only caps how many of them are returned. Therefore fewer than -n forms are returned if not enough of them reach the threshold. If no form reaches it at all, the most populated one is returned anyway and a warning is logged, so a molecule is never lost.

# up to 3 forms per molecule, each populated by at least 5%
apptainer run unipka.sif protonate -i input.smi -o output.smi -n 3 --occupancy 0.05

All forms of a molecule are written consecutively and ordered by decreasing occupancy (imidazole at pH 7.4):

c1c[nH]cn1  IMIDAZOLE   0.6254
c1c[nH+]c[nH]1  IMIDAZOLE   0.3746

Distribution of Microspecies over pH¶

--distribution-file additionally stores the occupancy of every individual microspecies over a range of pH values. Free energies of microspecies do not depend on pH, only their reweighting does, therefore a whole pH range is calculated without additional model predictions.

--ph-range and --ph-step are used only if --distribution-file was supplied. --distribution-min-occupancy applies both to the distribution file and to the images described below.

apptainer run unipka.sif protonate -i input.smi -o output.smi \
    --distribution-file distribution.tsv --ph-range 2 12 --ph-step 0.25

The file has a header and six columns:

Rows are written in blocks, one block per molecule, and molecules appear in the order they are completed by the pipeline. Within a block rows are ordered by pH value and then by decreasing occupancy, thus the most populated microspecies of every pH value comes first and the order reflects how the ranking changes with pH:

name    input_smi   microstate_smi  dG  occupancy   pH
IMIDAZOLE   c1c[nH]cn1  c1c[nH+]c[nH]1  -6.7938 0.999993    2
IMIDAZOLE   c1c[nH]cn1  c1c[nH]cn1  -5.24537    6.64703e-06 2
...
IMIDAZOLE   c1c[nH]cn1  c1c[nH+]c[nH]1  -6.7938 0.600706    7
IMIDAZOLE   c1c[nH]cn1  c1c[nH]cn1  -5.24537    0.399294    7
IMIDAZOLE   c1c[nH]cn1  c1c[nH]cn1  -5.24537    0.625422    7.4
IMIDAZOLE   c1c[nH]cn1  c1c[nH+]c[nH]1  -6.7938 0.374578    7.4

A microspecies is stored only if its occupancy reaches --distribution-min-occupancy at least at one pH value of the range. This is decided per microspecies and not per row, so that the whole curve of a stored microspecies is written and can be plotted without gaps. Consequently every pH value of a block has the same number of rows. The pH value given by --pH is always added to the range, therefore the occupancies reported in the main output can always be found in the distribution file.

Molecules for which nothing could be predicted are skipped in the distribution file. They are reported in the main output and in the log as described above.

Plotting the Distribution¶

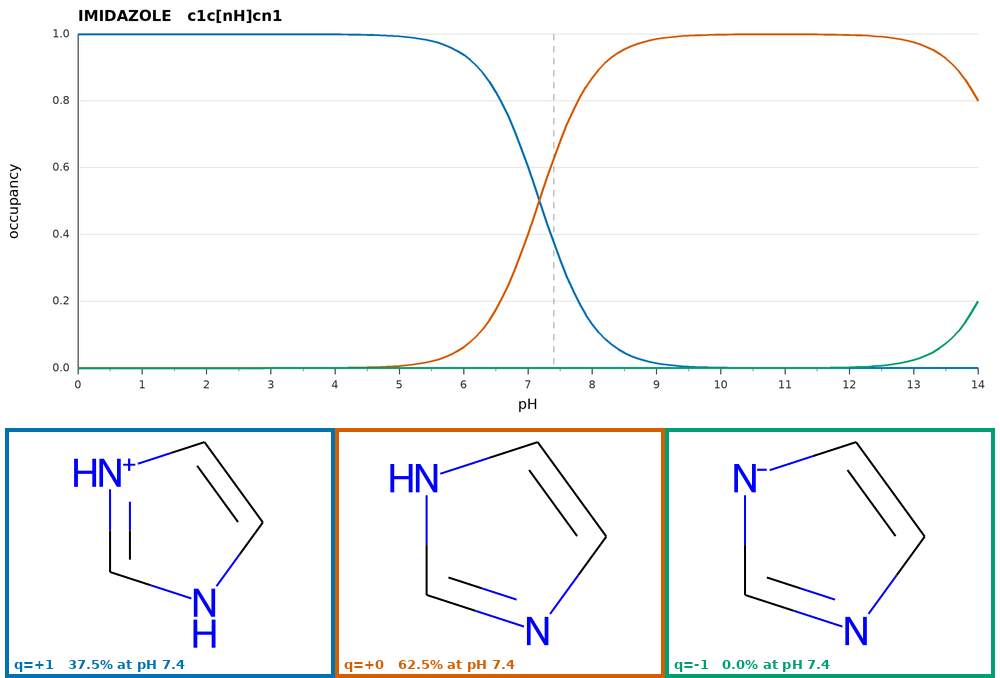

--png writes one image per molecule into a directory. The upper panel contains occupancy curves of individual microspecies and the lower panel their 2D structures. Every microspecies has its own colour which is used for its curve, for the frame of its structure and for its caption, thus the colour links a curve to a structure.

# images only
apptainer run unipka.sif protonate -i input.smi -o output.smi --png images

# both outputs at once
apptainer run unipka.sif protonate -i input.smi -o output.smi \
    --png images --distribution-file distribution.tsv --ph-range 2 12

Images are always plotted for the whole pH range 0-14 with a step of 0.1 to get smooth curves. --ph-range and --ph-step apply to the distribution file only and never affect images, whereas --distribution-min-occupancy applies to both outputs. Since the inclusion criterion is applied to the pH range of each output separately, an image and the distribution file may contain different sets of microspecies when their ranges differ. For instance, with --ph-range 8 12 the neutral form of aspirin is absent from the distribution file because it is not populated above pH 8, but it is still plotted because it dominates below pH 4.

The dashed vertical line marks the pH value of --pH, and the caption of every structure reports its charge and its occupancy at that pH, which is the value reported in the main output. Images are 1000 px wide, a structure occupies a cell of 330x250 px and up to three cells are placed in a row. An image is written for every molecule with a predicted ensemble, including molecules having a single form. Molecules for which nothing could be predicted are skipped, as in the distribution file.

Molecular Docking¶

Vina Docking¶

Complete pipeline (initialization + docking):

easydock -i input.smi -o output.db --program vina --config config.yml -c 4 --sdf

Using pre-initialized database:

easydock -o output.db --program vina --config config.yml -c 4 --sdf

Vina Configuration (config.yml):

protein: /path/to/protein.pdbqt
protein_setup: /path/to/grid.txt
exhaustiveness: 8
seed: 0
n_poses: 5
ncpu: 5

Grid Box Definition (grid.txt):

center_x = 10.0
center_y = 15.0
center_z = 20.0
size_x = 25.0
size_y = 25.0
size_z = 25.0

Gnina Docking¶

easydock -i input.smi -o output.db --program gnina --config config.yml -c 4 --sdf

Gnina Configuration:

script_file: /path/to/gnina
protein: /path/to/protein.pdbqt
protein_setup: /path/to/grid.txt
exhaustiveness: 8
scoring: default
cnn_scoring: rescore
cnn: dense_ensemble
n_poses: 10
addH: False
ncpu: 1
seed: 0

Smina Docking¶

Use Gnina program with Smina-specific configuration:

script_file: /path/to/gnina
protein: /path/to/protein.pdbqt
protein_setup: /path/to/grid.txt
exhaustiveness: 8
scoring: vinardo
cnn_scoring: None
cnn: dense_ensemble
n_poses: 10
addH: False
ncpu: 1
seed: 0

Vina-GPU Family¶

For Vina-GPU, QVina2-GPU, or QVinaW-GPU:

easydock -i input.smi -o output.db --program vina-gpu --config config.yml --sdf

Configuration:

script_file: /path/to/AutoDock-Vina-GPU-2-1 --opencl_binary_path /path/to/opencl/
protein: /path/to/protein.pdbqt
protein_setup: /path/to/grid.txt
n_poses: 3
thread: 8000  # Optional, default is 8000

QVina2 / QVina-W¶

easydock -i input.smi -o output.db --program qvina --config config.yml --sdf

Configuration:

script_file: /path/to/qvina2  # or /path/to/qvinaw
protein: /path/to/protein.pdbqt
protein_setup: /path/to/grid.txt
exhaustiveness: 8
n_poses: 3
ncpu: 2
seed: 0

Server-Based Docking¶

--program server enables docking through a long-running server process. The server is started once per worker and handles multiple molecules without restarting. This mode supports containerized docking programs such as CarsiDock and GPU-accelerated Vina variants.

easydock -i input.smi -o output.db --program server --config config.yml -c 4 --sdf

The config file has three kinds of keys:

• Control keys (script_file, score_mode, startup_timeout, etc.) — read by EasyDock itself and placed at the top level.
• init_server: — parameters forwarded verbatim to the server's init command (receptor files, pocket definition, program-specific settings).
• info_server: — optional overrides for the server's default INFO values such as batch_size. The server exposes these defaults via its info command; this section lets you change them without modifying the server.

The ligand input/output formats (ligand_in_format, ligand_out_format) are auto-detected from the server's info command and do not need to be set manually.

CarsiDock¶

CarsiDock is a deep-learning docking program. It accepts SMILES input and uses RTMScore for pose ranking (higher score = better). A pre-built Apptainer container is available (see Installation).

script_file: /path/to/carsidock.sif
score_mode: max   # RTMScore: higher score is better

init_server:
  protein: /path/to/protein.pdb
  reflig: /path/to/reference_ligand.sdf
  num_conformer: 5

• protein: protein PDB file (defines the binding site)
• reflig: reference ligand that defines the binding pocket
• num_conformer: number of conformers to generate per ligand (default: 5)

To limit the number of molecules docked per server request (e.g. for memory reasons), override batch_size via info_server:

script_file: /path/to/carsidock.sif
score_mode: max

init_server:
  protein: /path/to/protein.pdb
  reflig: /path/to/reference_ligand.sdf
  num_conformer: 5

info_server:
  batch_size: 5

SurfDock¶

SurfDock is a surface-aware deep-learning docking program. It accepts SMILES input and ranks poses by screen confidence (higher score = better). A pre-built Apptainer container is available (see Installation).

script_file: /path/to/surfdock.sif

init_server:
  protein: /path/to/protein.pdb
  reflig: /path/to/reference_ligand.sdf
  num_save_poses: 10        # number of poses to save per ligand (default: 10)
  device: gpu               # gpu or cpu (default: gpu)
  tmpdir: /path/to/tmp/dir  # (optional), where to store temporary files
  keep_tmpdir: true         # (default: false), whether to keep temp file (useful for debug)

Vina-GPU Server¶

The Vina-GPU server bundles GPU and CPU Vina variants in a single container. It accepts PDBQT input and output and uses Vina scoring (lower = better).

script_file: /path/to/vinagpu.sif

init_server:
  protein: /path/to/protein.pdbqt
  protein_setup: /path/to/grid.txt
  program: vina-gpu
  n_poses: 9
  thread: 8000
  seed: 0

Generic Docking¶

--program generic runs any external docking binary or Python script driven purely by a YAML config — no code changes required. Useful for docking programs that EasyDock does not ship a dedicated module for.

easydock -i input.smi -o output.db --program generic --config config.yml -c 4 --sdf

See Generic Docking for the full config format and I/O conventions.

Resuming Interrupted Calculations¶

Simply run the same command or provide just the database:

easydock -o output.db

EasyDock will continue from where it stopped, using settings stored in the database.

Output Options¶

Generate SDF File¶

Add --sdf flag to create an SDF file with top poses after docking will be finished:

easydock -o output.db --program vina --config config.yml -c 4 --sdf

This creates output.sdf with the best scoring pose for each molecule.
